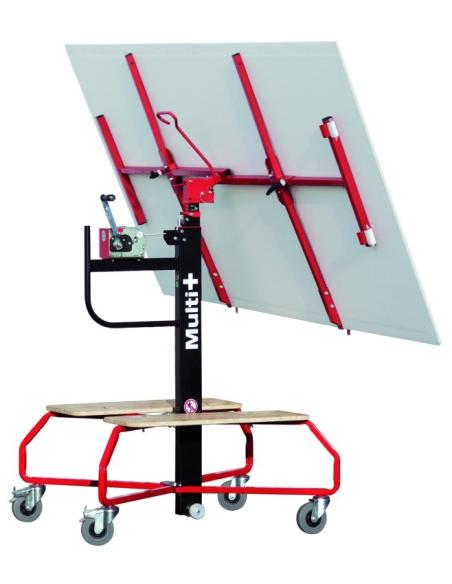

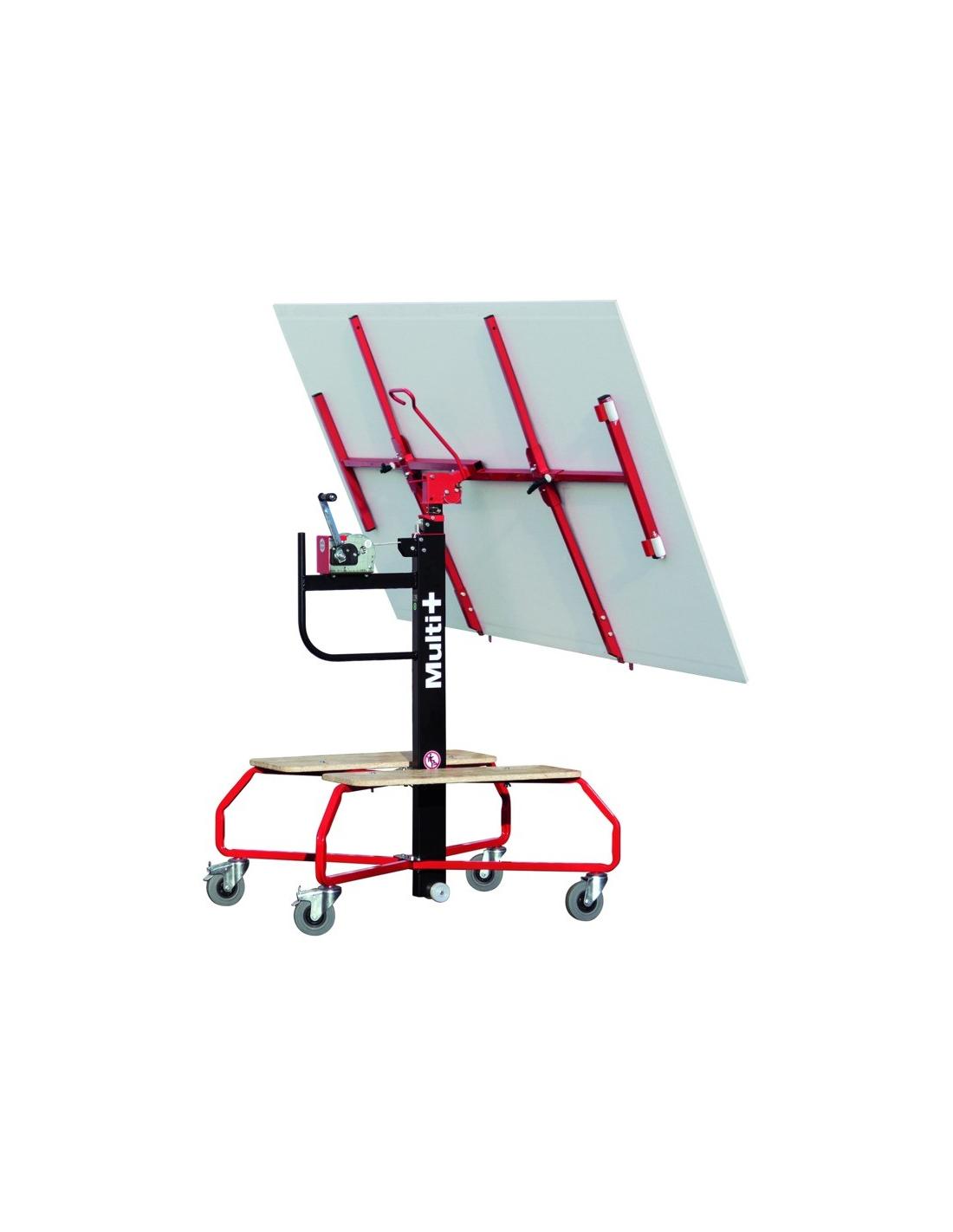

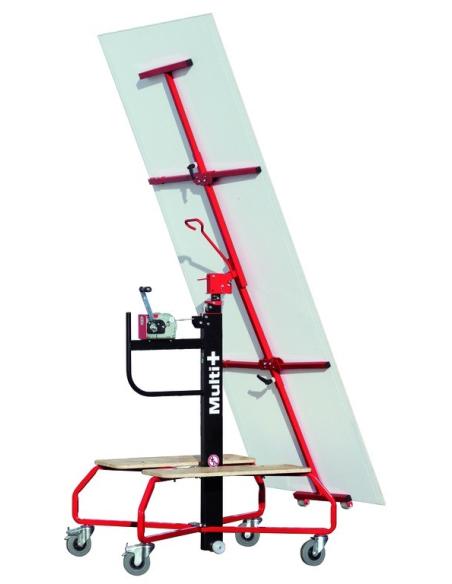

Plasterboard elevator

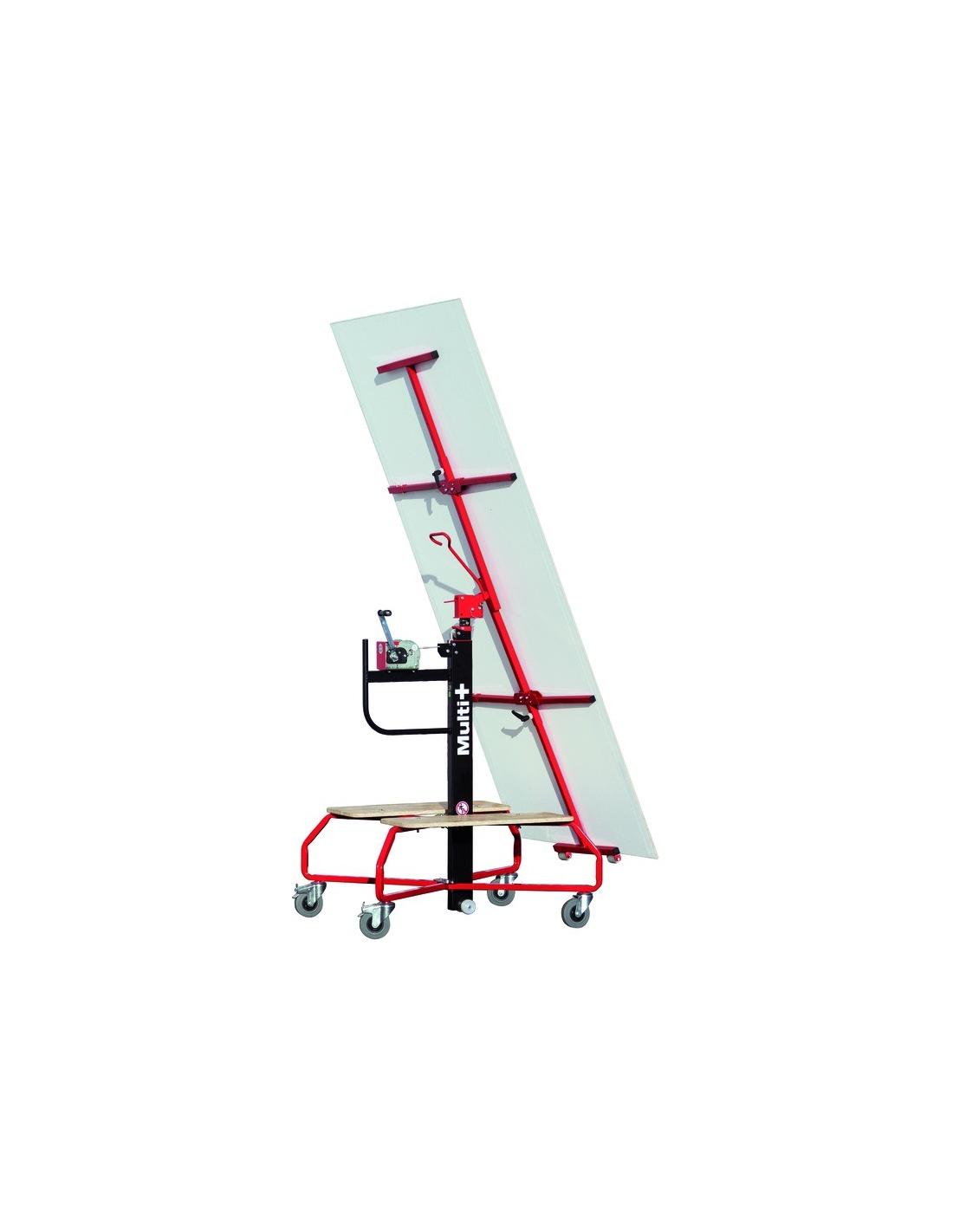

For panels up to 4.88 x 1.22m.suitable for level mounting and sloping ceilings or walls. The arm lowers for easier loading.

TECHNICAL DATA

Epoxy painted steel

Plate format (max.): 3.6 x 1.2 m

Maximum load: 70 kg

Maximum heights:

- Up to 4.00 m ceiling with integrated extension

- Up to 3.20 m from ceiling without extension

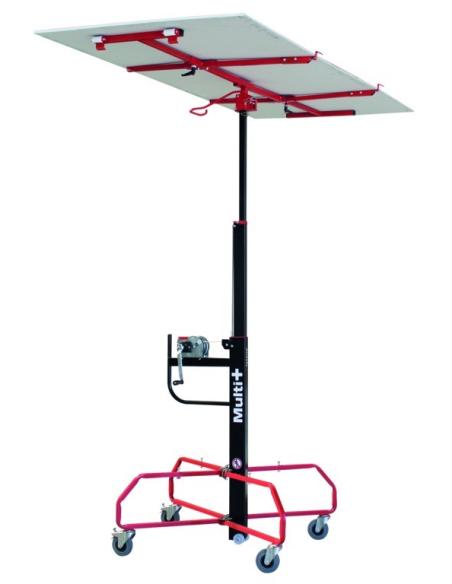

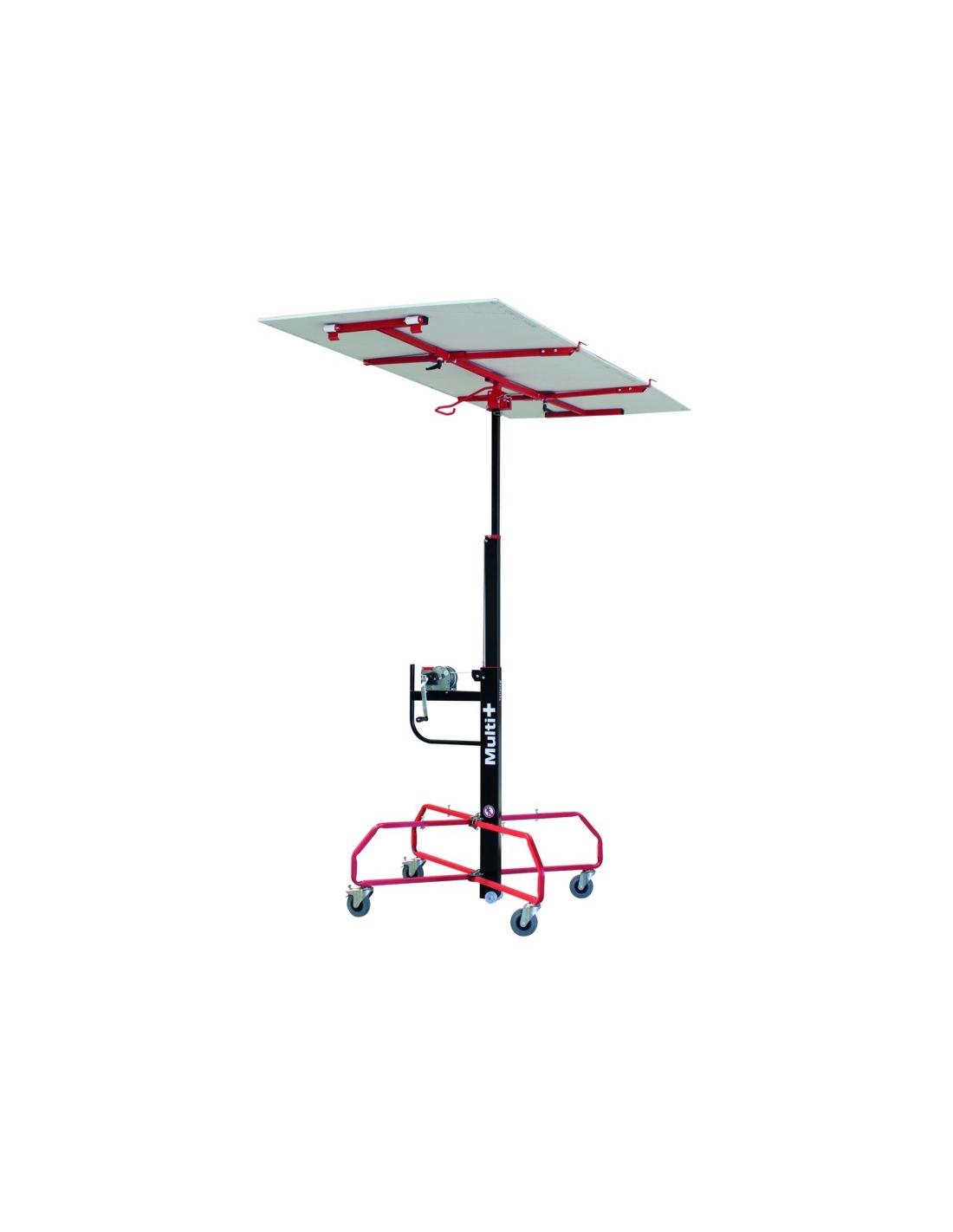

- Up to 5.60 m vertical

- Up to 5.5 m when crawling

Minimum height: 1.48 m (horizontal plate)

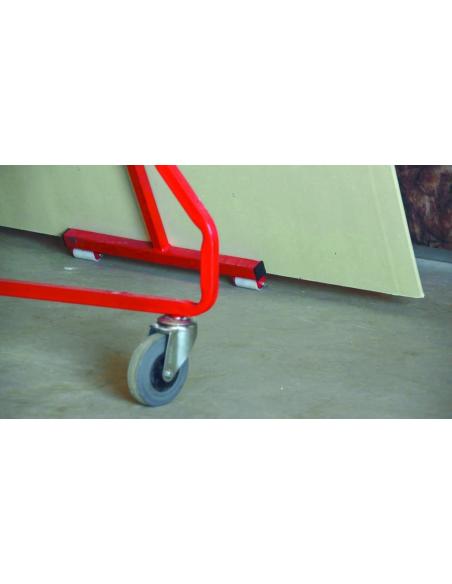

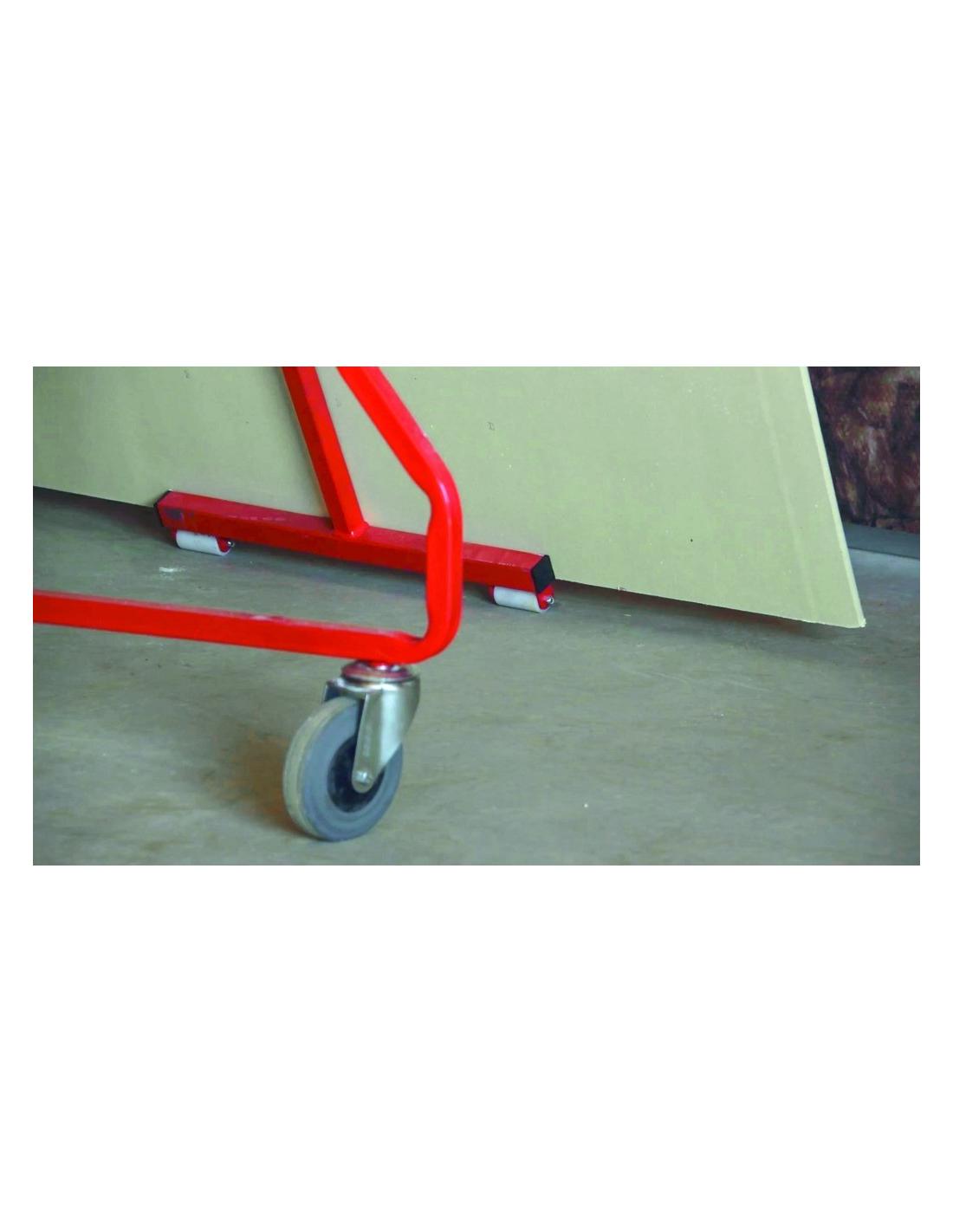

Loading height: 0.82 m (possibility of loading the plate on the ground by crawling)

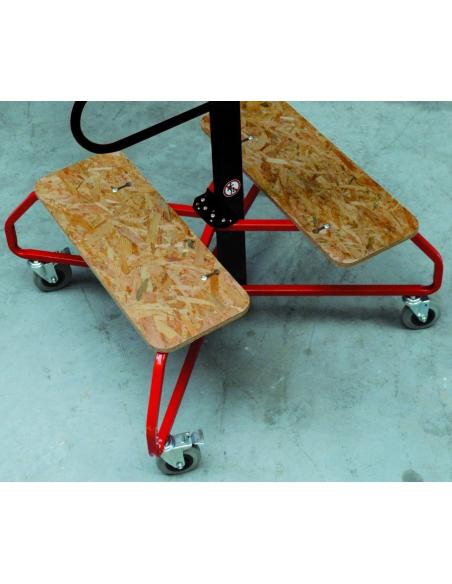

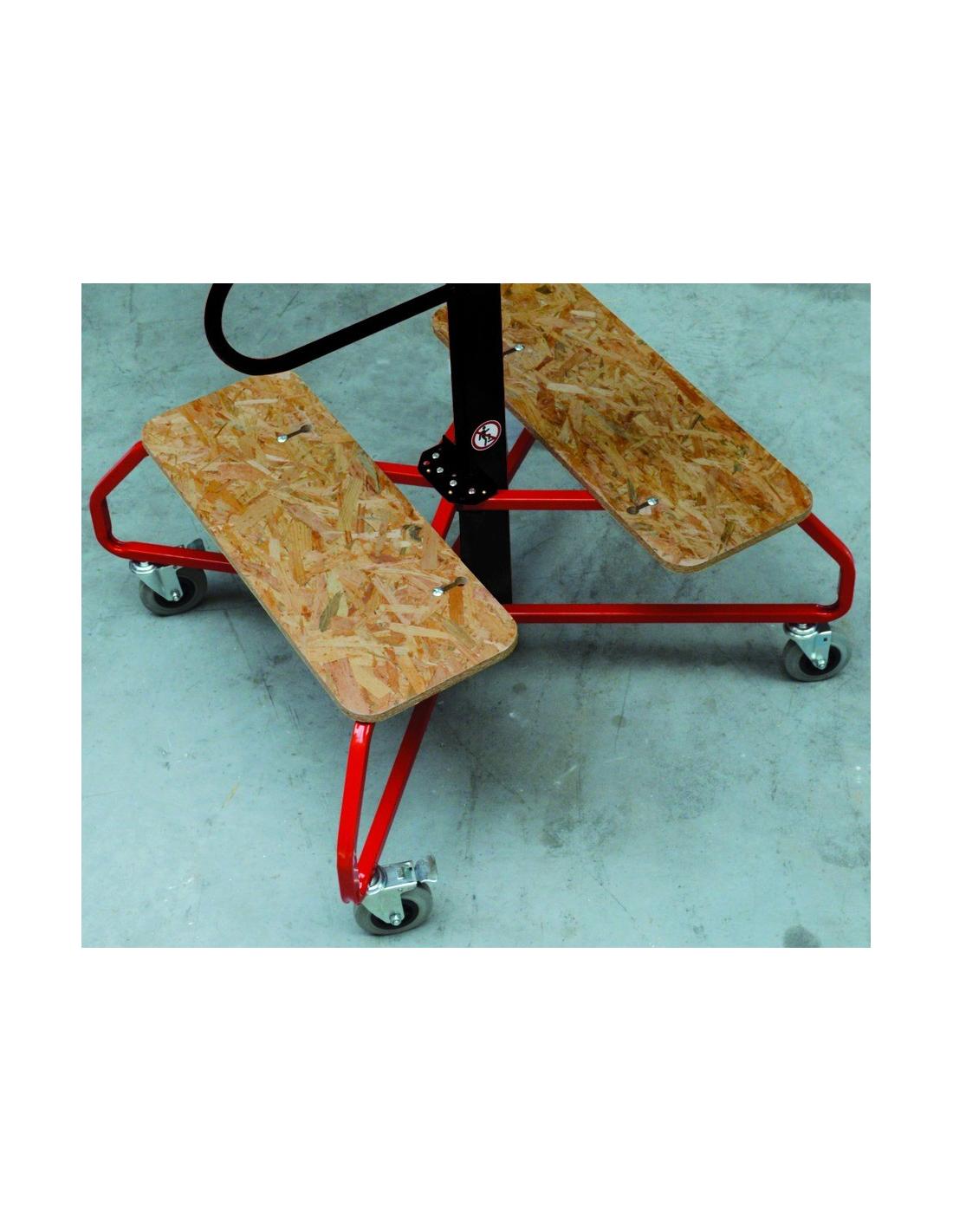

Wheelbase: 0.80 x 1 m

Central roll-out under the mast for transportation to the construction site

Excellent base rigidity with 4 quick-release captive pins (more durable)

Weight: 47 kg (52 kg with shelves)

Quick mounting system for tool trays

Machinery directive: 2006/42/EC
