Articulated Crawler Platform [19MT]

A160
€225.00
Tax included

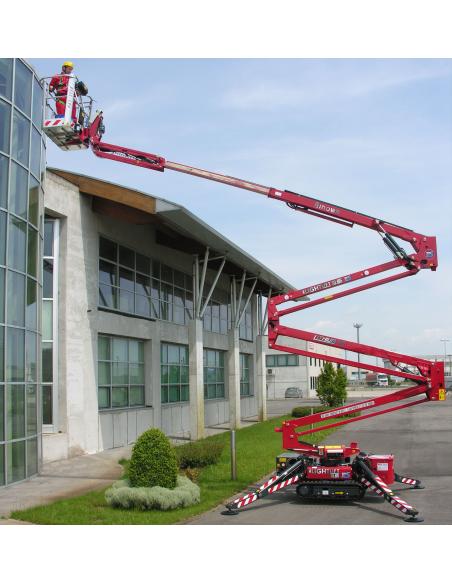

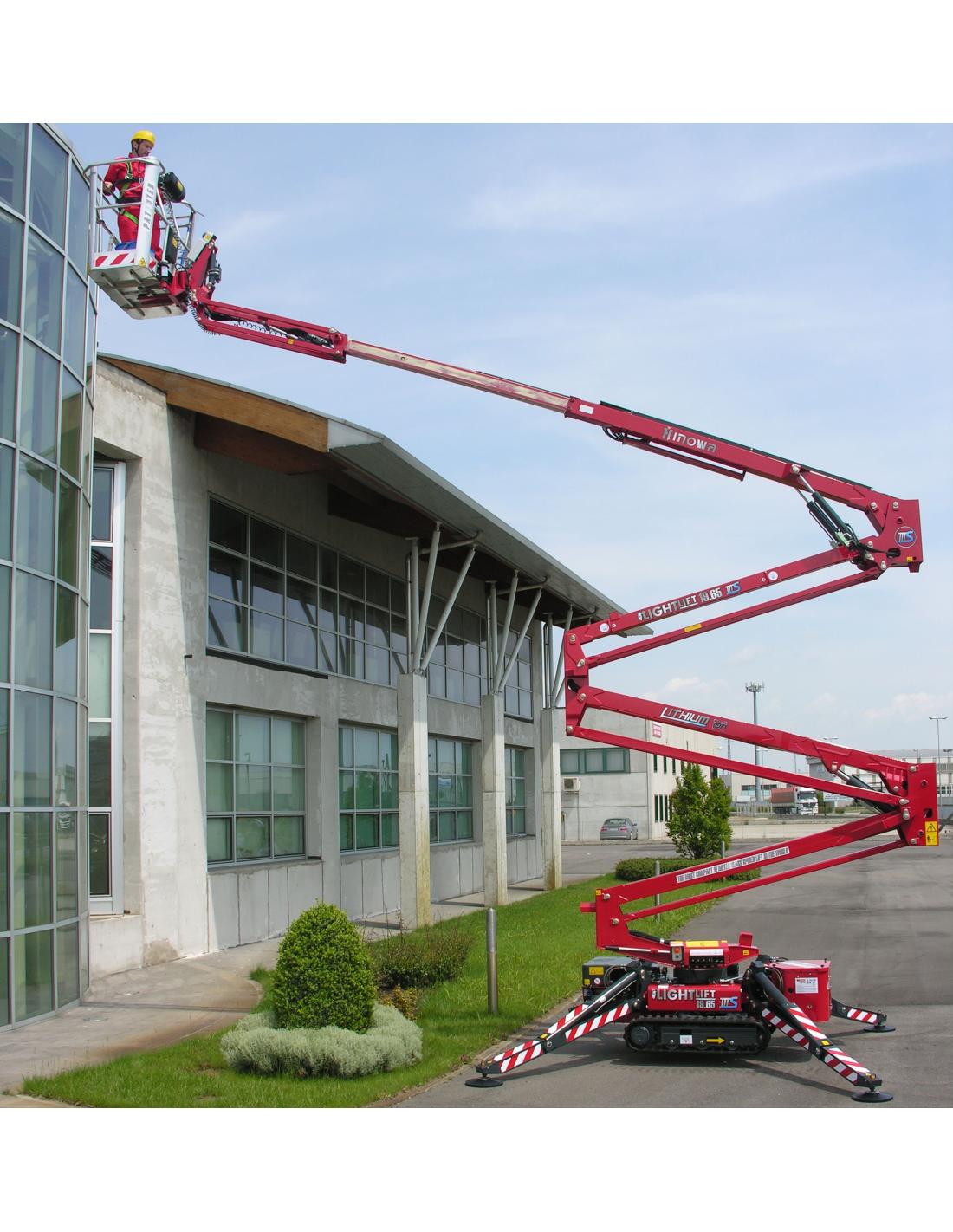

Easy to use, stable and compactspider aerial platform for operations up to 19 meters.

* You will always need to leave a security deposit of 1500.00€.

1 Day
225 €
+1 Day
185 €
Week
1115 €
Weekend
385 €
2nd Week
2170 €
Month
3445 €
From
Until

€225.00



The aerial platform has several other features that make it ideal for different application sectors and can offer the following advantages:

- "IIIS" automatic stabilization, destabilization and leveling system;

- Access to the rear basket with retaining bar and ladder;

- Remote control with simplified interface and multilingual menu;

- Double load cell with electronically controlled automatic load measurement of 120-200 kg;

- Automatic engine speed control to reduce consumption and noise:

- Electroproportional controls for simultaneous movements;

- Lubrication-free fiberglass pins and bushings;

- Double-channel safety load cell with strain gauge for perfect weight control in the basket;

- Dual emergency lowering devices with controls on the ground and in the basket;

- Self-leveling basket through compensation with opposing cylinders;

- Anchor points for transportation in vehicles.

Specifications

Engine
Power output 2.2 kW
Voltage 230 V
Rated current 16 A
Power supply Wired
Product data
Horizontal working radius 4,80m
Type of operation Electric

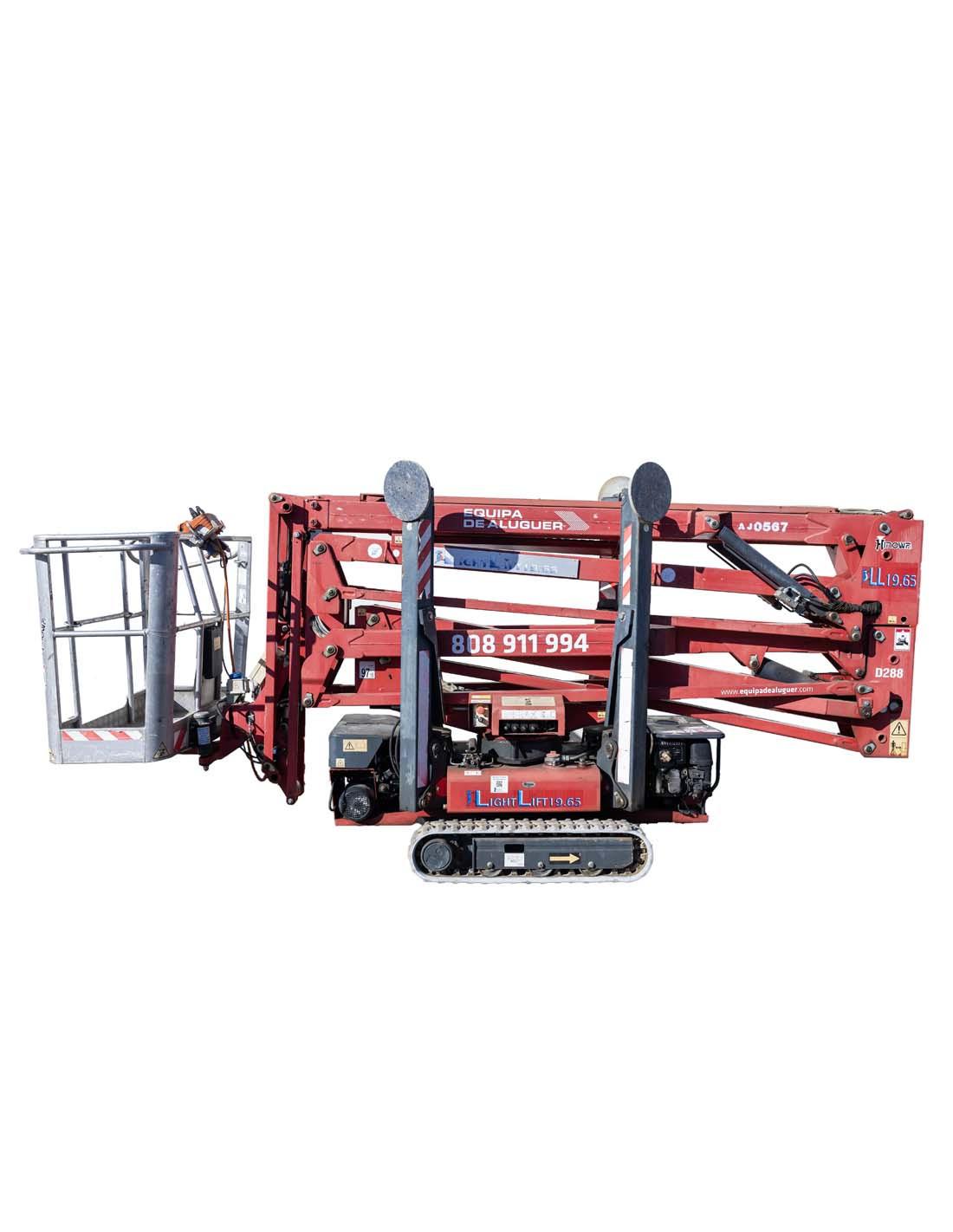

Dimensions (COMPACT)
Length 4,48m
Width 0,8m
Height 1,98m
Weight 2098kg
Dimensions (WORKING)
Length 1,48m
Width 0,77m
Height 18,8m
Weight 2098kg
Sound and noise
Sound level Not ascertained
