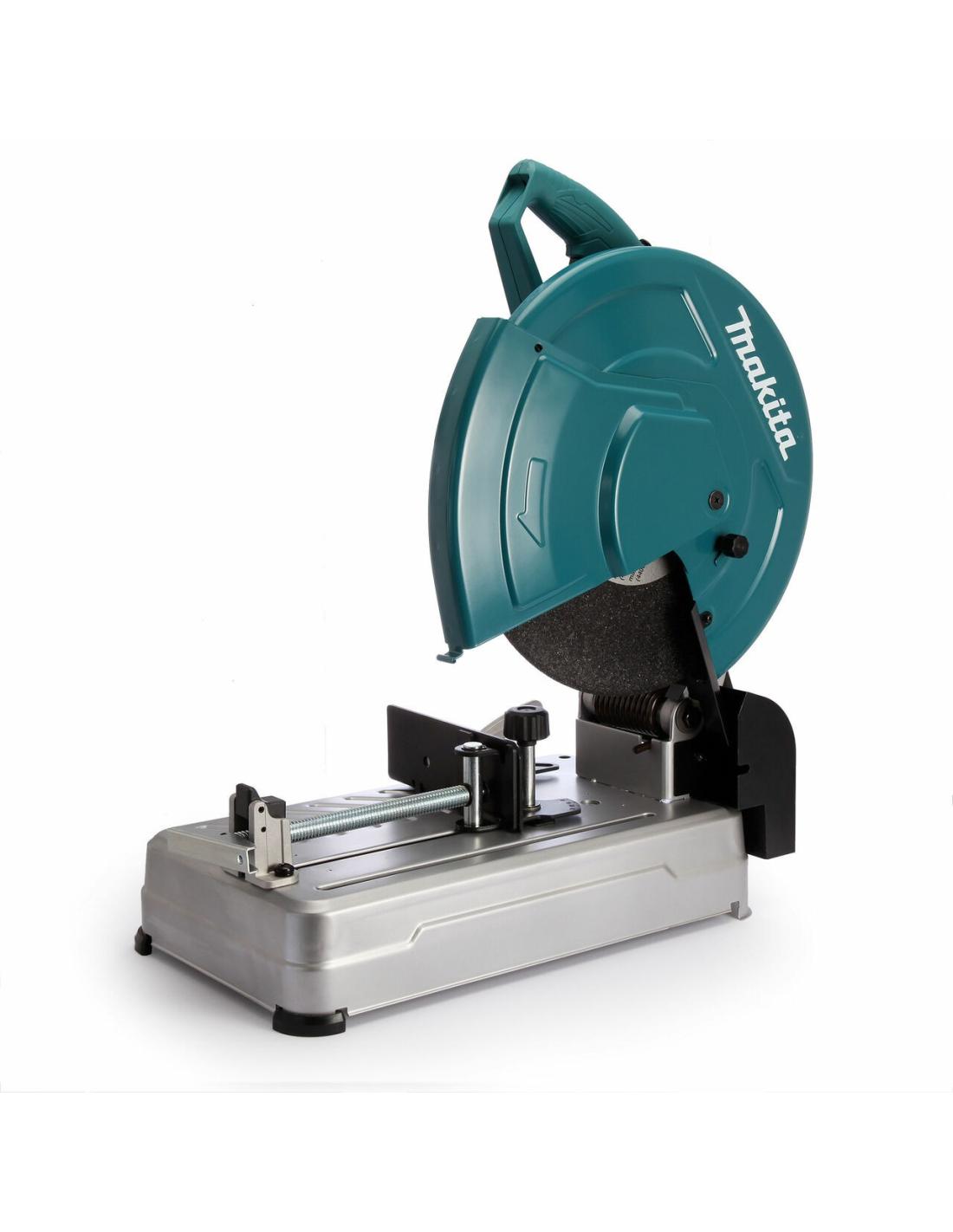

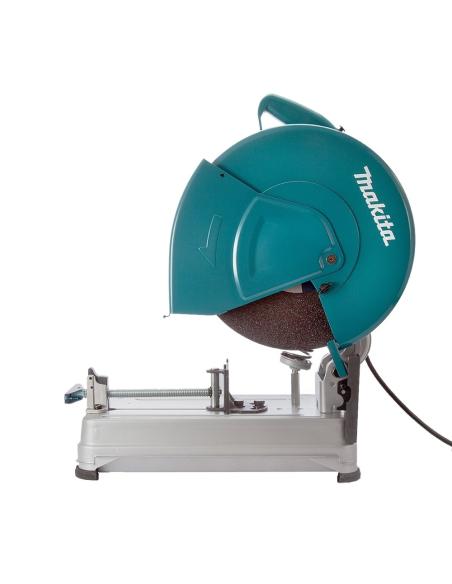

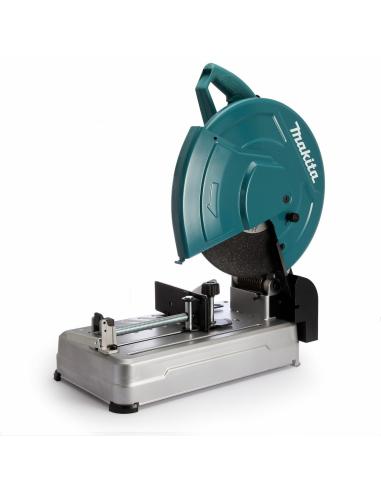

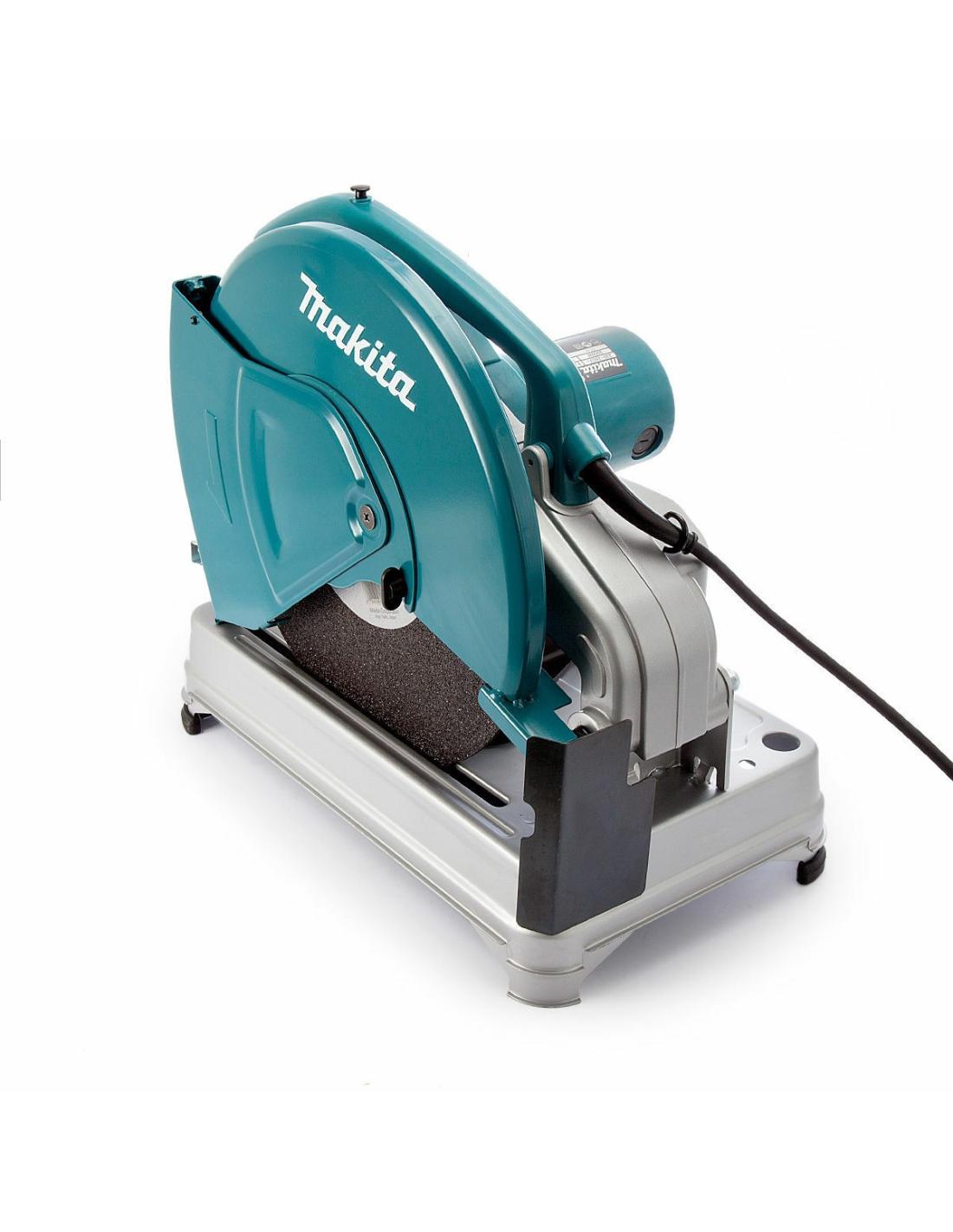

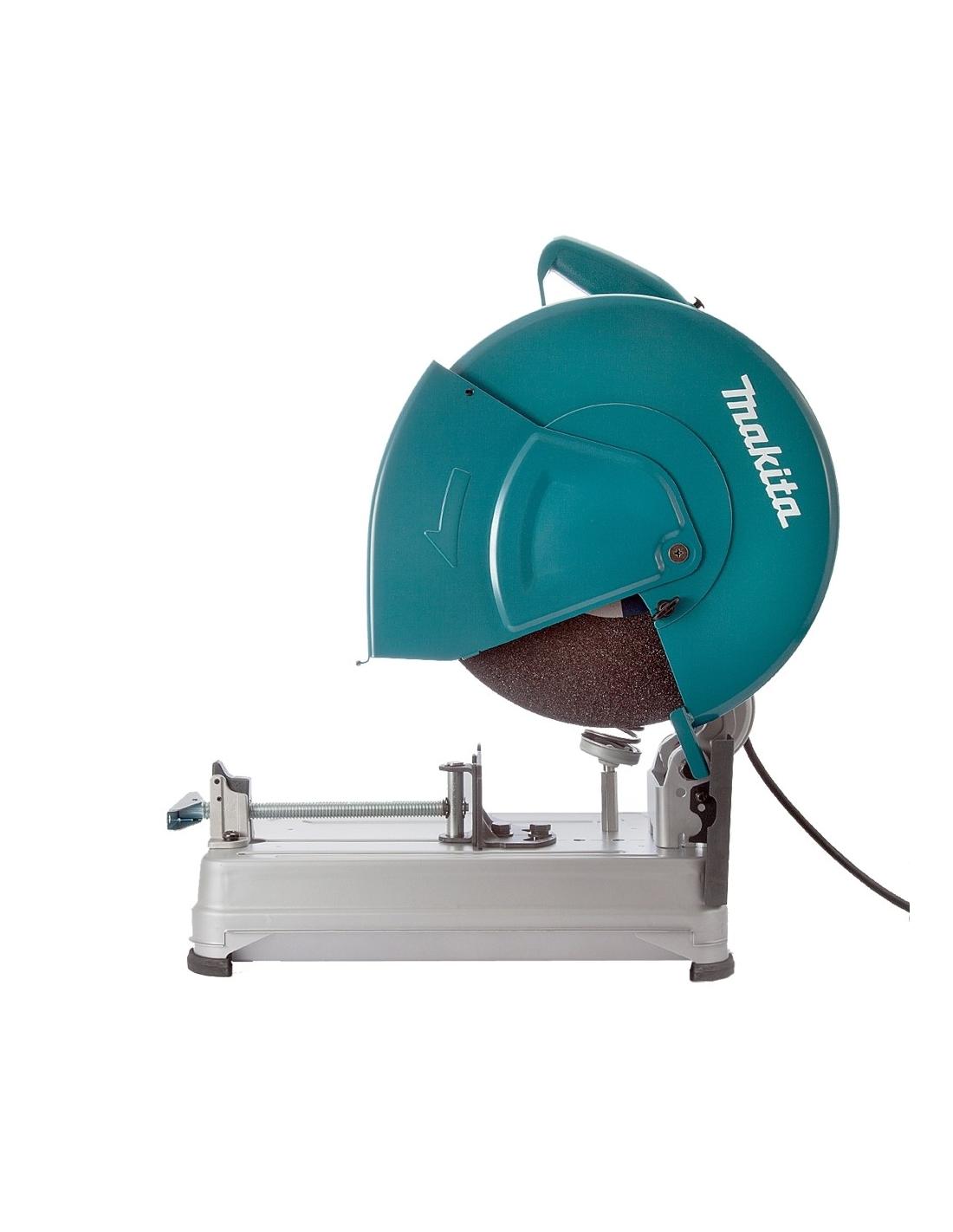

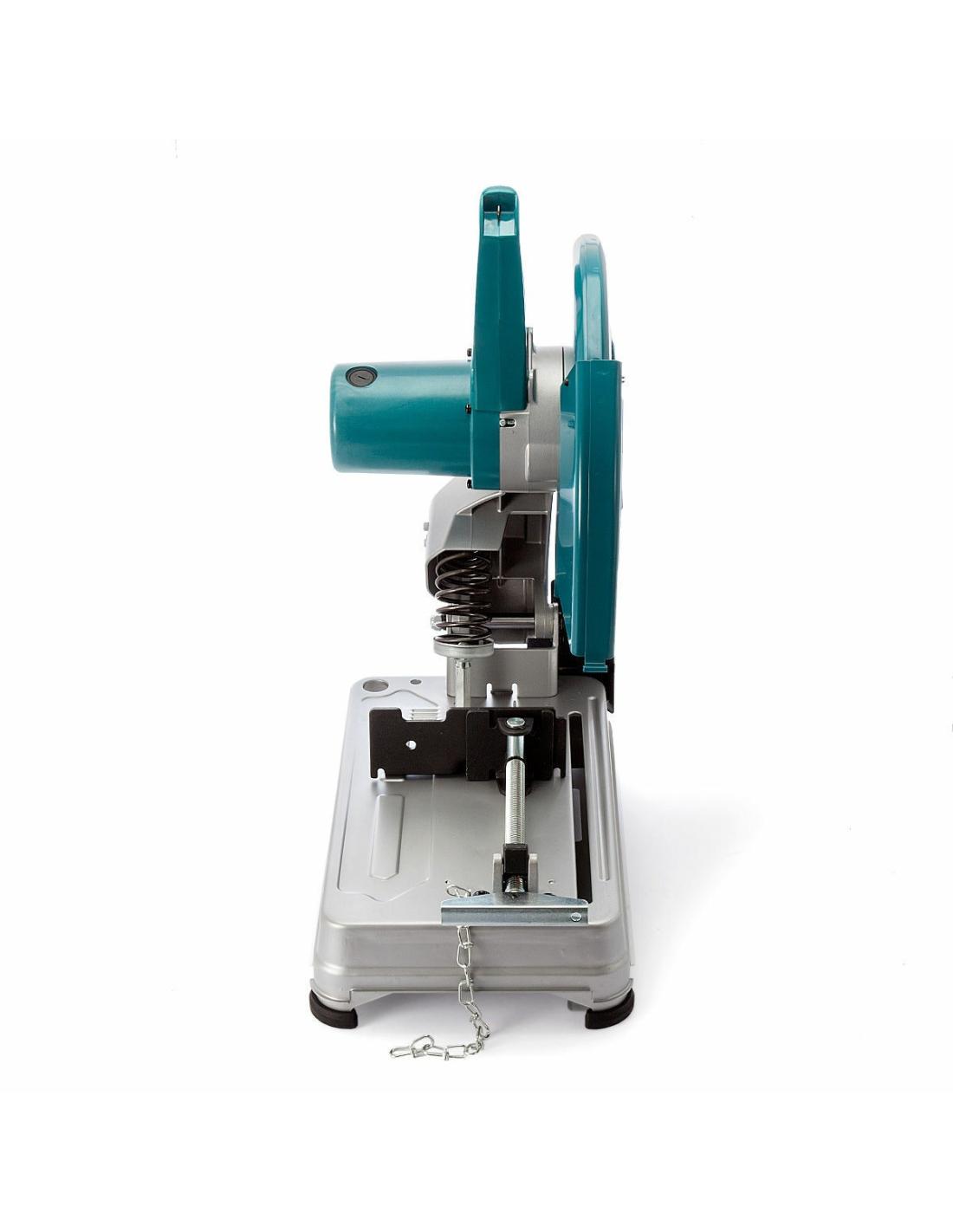

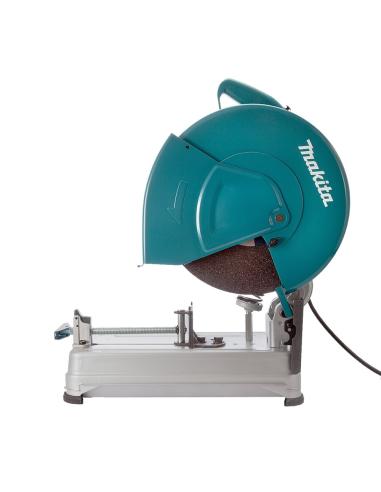

Iron Miter Saw [335MM]

355 mm 2200W abrasive disc cutter

BENEFITS FOR THE USER

• 2,200 W 355mm abrasive disc cutter.
• Transport handle for easy moving of the machine.
• Trigger with locking button for continuous work.
• Spindle lock for easy removal of the cutting disc.
• Easy replacement of the cutting blade with a simple turn of the manual lock (no tools required).
• Blade head lock for storage and transportation.

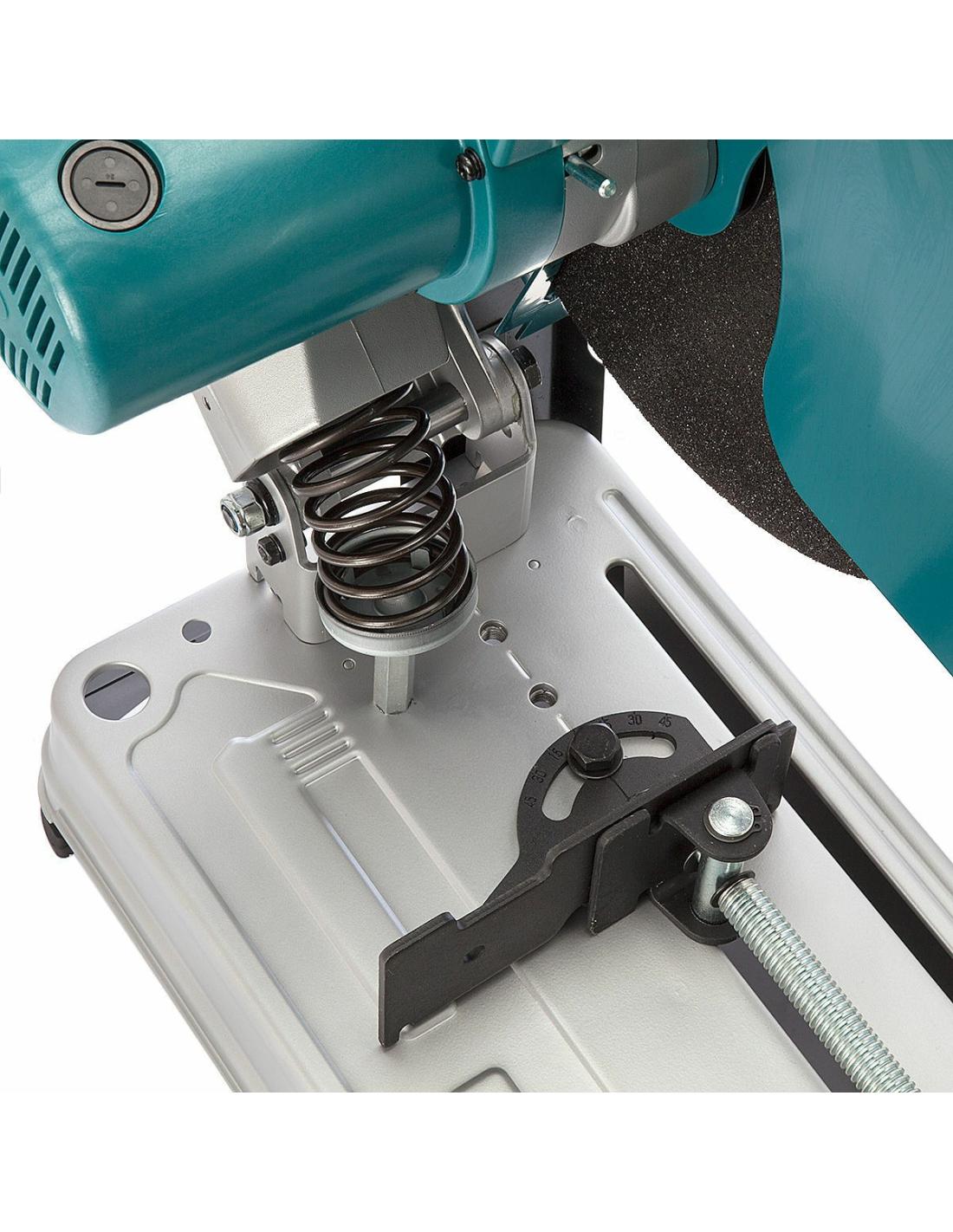

• Quick-adjust press for fast and easy workpiece clamping.
• Adjustable guide from 0 to 45 degrees with three easily adjustable pre-set positions.

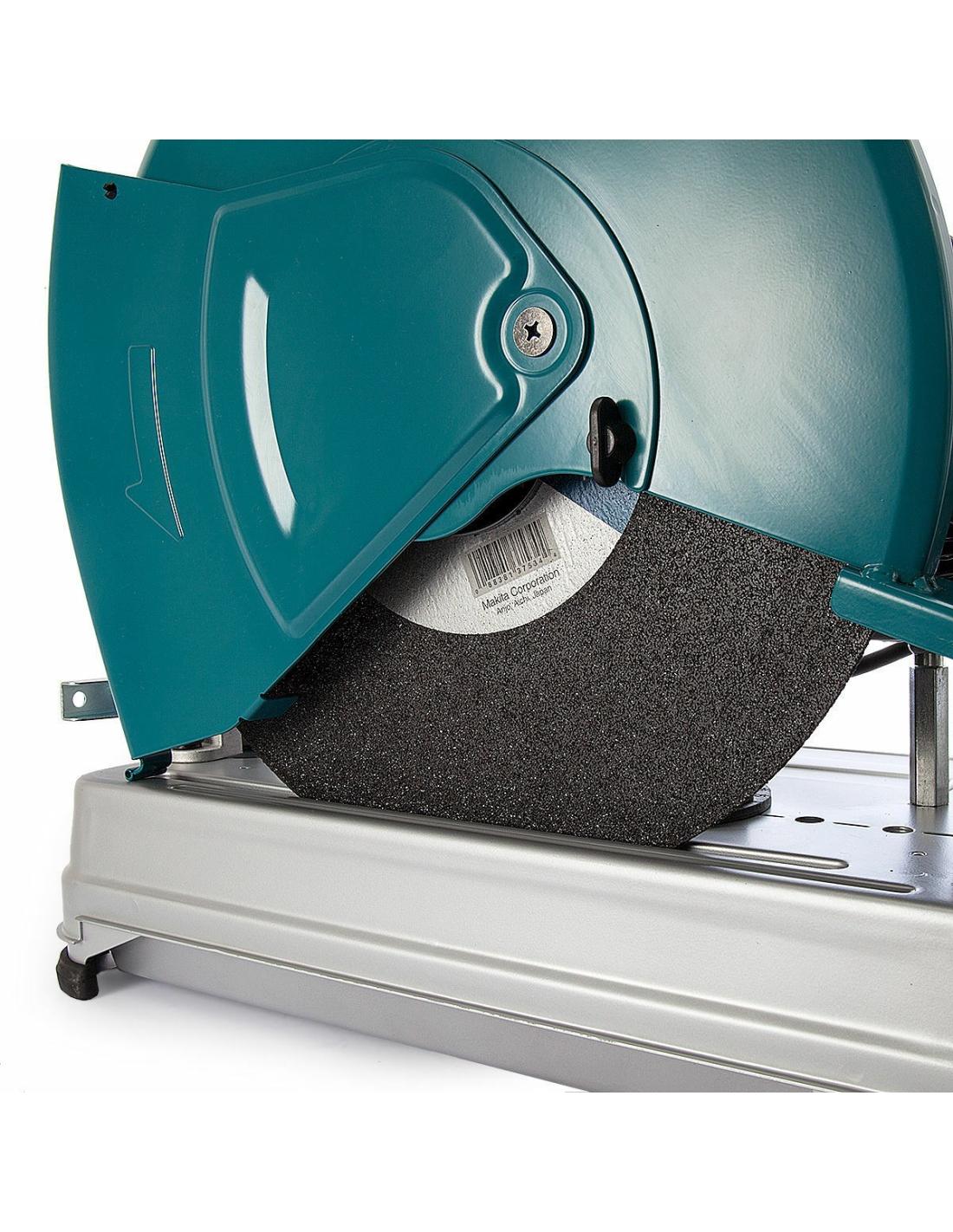

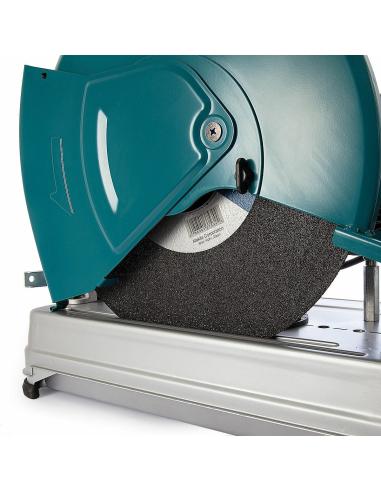

• Safety guard, redesigned for an optimum view of the workpiece and to protect against sparks.

TECHNICAL DATA

• Power: 2,200 W
• Revolutions per minute (r.p.m): 3,800 rpm
• Disc outside diameter: 355 mm
• Inside blade diameter: 25.4 mm
• Max. cutting capacity 90 (rectangle): 115 x 130 mm
• Max. cutting capacity 90 pipe: 127 mm
• Max. cutting capacity 45 (rectangle): 115 x 103 mm
• Spindle lockDimensions (LxWxH): 530 x 295 x 640 mm
• Weight: 18.7 Kg
• Cable length: 2.5 m
• Vibration emission: 2.50 m/sec²
• Vibration uncertainty: 1.50 m/sec²
• Sound pressure: 102.00 dB(A)
• Sound power: 110.00 dB(A)
• Sound uncertainty (k): 2.50 dB(A)
